PRINCIPLES OF WORK

Nanotechnology Revolutionizes Thermal Insulation

Unique Properties

The nanotechnological thermal insulation material exhibits remarkable properties that set it apart from traditional insulation. Its thermal conductivity is not proportional to bulk density, and its thermal resistance cannot be defined by the simple ratio of thickness to conductivity.

Microscopic Ceramic Spheres

The insulation contains microscopic (0.03-0.08 mm) airless, vacuumed ceramic spheres. These high-temperature ceramic spheres are suspended in a liquid compound, creating a flexible yet durable material.

Exceptional Thermal Performance

Testing has shown the material has a remarkably low thermal conductivity of just 0.003 W/m K, outperforming traditional insulation like polystyrene and mineral wool.

Thermal Insulation Principles Redefined

01 Reflective Ceramic Spheres

The micro-sized ceramic spheres reflect up to 90% of infrared radiation, significantly reducing heat transfer.

02 Minimal Contact Area

The small contact surface area between the ceramic spheres further limits conductive heat 3 transfer.

03 Vacuum Insulation

The vacuum spaces within the material provide excellent thermal insulation, as heat transfer is minimized in the absence of air

Versatile and High-Performance Insulation

Thermal Regulation

The material’s thermal control and vapor permeability help regulate temperature and humidity, making it ideal for a wide range of applications.

Thin and Flexible

The ultra-thin, 1-3 mm thick material can be easily applied to complex surfaces without adding significant weight or altering the building’s appearance.

Durable and Long -Lasting

The manufacturer guarantees 10 years of quality and 25 years of usable life, making it a reliable and cost-effective insulation solution.

Thermal Versatile Application

The liquid-based material can be applied to a variety of surfaces, including metal, plastic, concrete, and brick, making it suitable for both indoor and outdoor use.

ADVANTAGES

Advantages of Ceramic Thermal Insulation

01 Energy Savings

Provides up to 30-40% energy savings compared to traditional insulation.

02 Heat Reflection

Reflects 85% of radiant energy, keeping homes cool in the summer and reducing the need for air conditioning.

03 Thermal Bridging Solution

Effectively eliminates condensation and thermal bridging issues.

04 Mold Prevention

The material’s diffusion capacity prevents the formation of mold.

Innovative Insulation for Modern Buildings

Fire Protection

The coating provides protection against fire, charring at 260°C and disintegrating at 800°C.

UV Resistance

The material resists UV rays, maintaining its original color and appearance

Anti-Allergenic

The insulation is safe for people with asthmatic problems, making it a healthy choice.

Sound Insulation

TThe material provides excellent sound-proofing, with a 0,33% attenuation rate per 1 mm of thickness.

Transforming the Insulation Industry

01 Thin and Lightweight

The ultra-thin, 1-3 mm thick material doesn’t  add significant weight or alter the building’s appearance.

02 Easy Application

The liquid-based formula can be easily applied by roller or spray, even on complex surfaces.

03 Faster Installation

The quick and efficient application process minimizes downtime and production losses.

PRODUCT RANGE

Sustainable and Eco-Friendly Insulation

0.001 W/m K

Thermal Conductivity

-40°C to 600°C

Temperature Range

5°C to 150°C

Application Temperature

12%

Elongation at Rupture

24 hours per layer

Drying Time

Ecologically safe, non-toxic, no harmful compounds

Environmental Impact

Liquid ceramic-based thermal insulation coating

The Ceramic Magic Ball nano insulation coating significantly outperforms the thermal conductivity, reflexion and heat transfer properties of the known conventional insulation materials and therefore its use provides a professional and innovative solution for a wide range of situations.
Through the hungarian developed and manufactured Ceramic Magic Ball product line of the Hungarowatt Ltd. And would like to contribute to the conservation of our natural resources and to the sustainable development of humanity. Our aim is to rationalize energy consumption and to provide the opportunity to live in a healthier environment.

Insulation of metal tank, Hungary

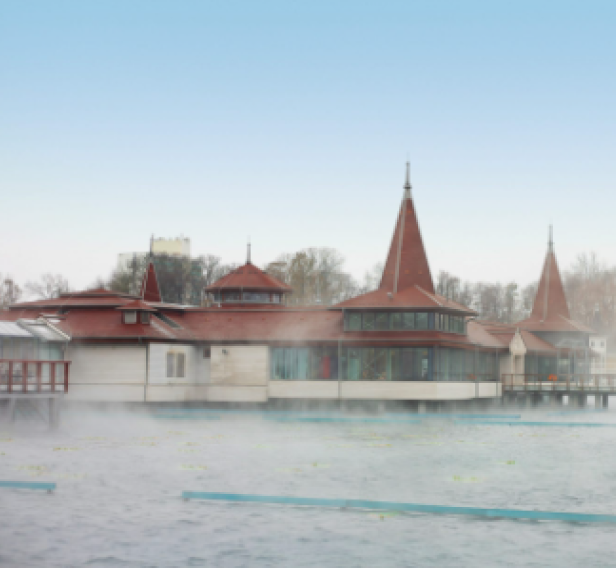

Thermal bath, Héviz (Hungary)

Heat insulation in high humidity areas

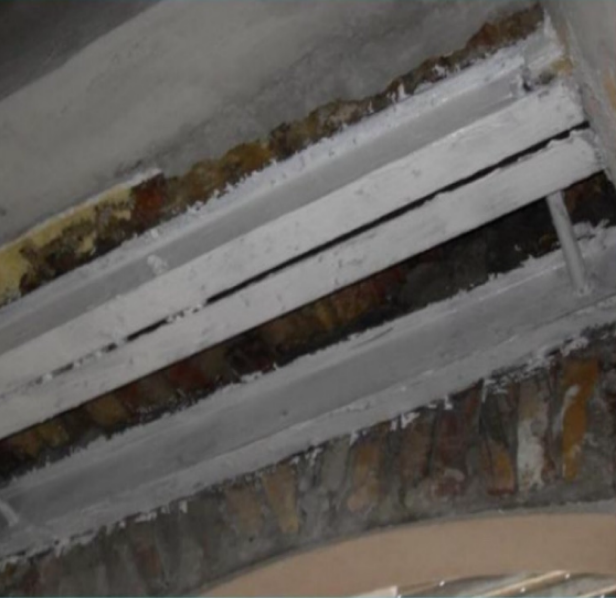

Eiffel Palace, Budapest — Metal l beam insulation

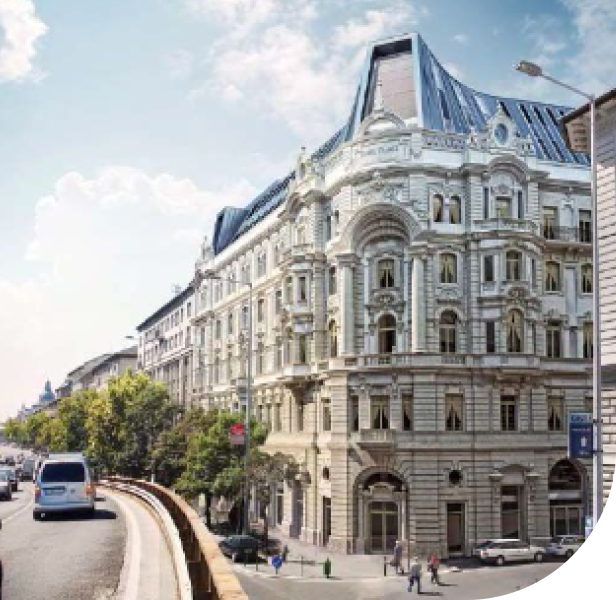

Eiffel Palace, Budapest

Thermal insulation coating allows to maintain historical facade

Product range

01 Uni, UniPress — Indoor surfaces

Due to its material structure and ingredients it is primarily for indoor use. We recommend it for thermal insulation of indoor wall surfaces. Areas of use: thermal insulation of interior walls, interior insulation of thermal bridges; on concrete, gypsum, precast concrete panels and lime, cement or gypsum based plasters. It can be applied to wood and wood based materials.

02 Front, FrontPress — Outdoor surfaces:

The composition of materials and the binder makes it ideal for outdoor use. We recommend it for thermal insulation of outdoor wall surfaces. Areas of use: thermal insulation of exterior walls, exterior insulation of thermal bridges, flat roof insulation (bitumen sheets), facade insulation of historic buildings; on concrete, gypsum, precast concrete panels and lime, cement or gypsum based plasters. It can be applied to wood and wood based materials.

03 Application:

Paint brush, paint roller, iron filler, standard spray equipment, spray plastering machine and airless paint equipment. Pressure: from 10 to 140 bar.

01 Basic — Primer for walls:

A primer specifically developed for Ceramic Magic Balls products. Its usage increases the surface adhesion and forms a durable bond between the layers. Suitable for exterior and interior use.

02 Eco — Interior insulation:

The binding material makes it ideal for the thermal insulation of indoor walls and interior metal surfaces. Due to its consistency it can be widely used and it has excellent adhesion. Areas of use: Thermal insulation of interior walls, interior insulation of thermal bridges; on concrete, gypsum, precast concrete panels and lime, cement or gypsum based plasters. Also ideal for the insulation of interior metal surfaces, heating and cooling systems, tanks, pipes and fittings.

03 Application:

Paint brush, paint roller, iron filler, standard spray equipment

Product range

Advantages over the competition:

01
The product is made in the European Union
02
The product meets A2-s1, dO fire classification (Euro class) in case of an 1 mm layer. This rating is unique in this thickness.
03
Above 1 mm layer thickness the fire classification is C2-s1, d0. The competing products do not meet this rating.
04
Due to greater percentage by weight ratio of ceramic spheres the insulation properties of the Ceramic Magic Balls product family is better than the measured values of the competing products
05
Even in case of relatively small orders we’re able to produce the product specifically for the customer’s needs.
06
The products labeled as Press are manufactured using high resistance ceramic balls and are able to withstand up to 140 bar.
07
Due to to the high resistance to pressure the Press product line can be applied by airless technology.

Advantages compared to conventional insulation technology:

01
Simpler application technology compared to traditional insulation.
02
Time saving fast application.
03
Require fewer hours of work per unit area, cost-effective.
04
Insulation of facades with complicated geometry (monuments, silos, etc.)
05
Suitable for thermal insulation of existing buildings.
06
Can be used both indoors and outdoors.
07
Eco-friendly product, the product itself may be colored
08
The airless spray technology significantly reduces the work time.

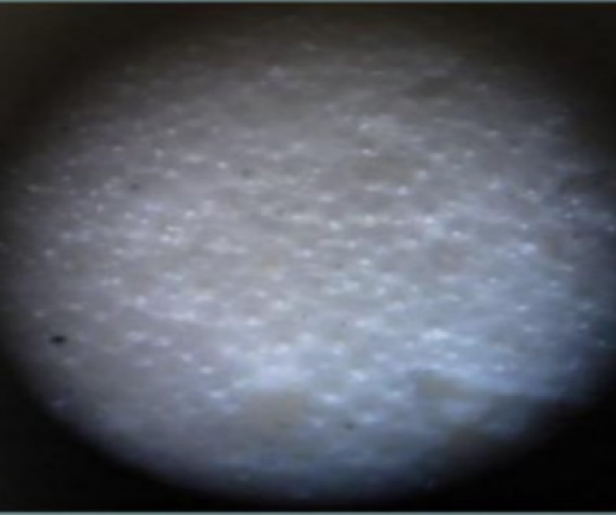

Microscopic examination (400X)

FrontPress

Applied with Airless spray paint gun

Front

Applied with iron filler

The EMI conducted Bacteria and Fungi inquiry on the product, in accordance with EN ISO 846:1999 standard.

The mold resistance test results show that the Ceramic Bagic Ball insulating coating material may not be attacked by fungi and do not contain usable nutrients for fungi. The Ceramic Bagic Ball thermal insulation coating is therefore classified as fungi resistant.
In the carried out bacterial resistance tests it was found that the Ceramic Bagic Ball thermal insulation coating does not contain usable nutrients for bacteria. The Ceramic Bagic Ball insulating coating is therefore classified as resistant to bacteria.

Area of use

01
Thermal insulation of interior walls
02
Elimination of thermal bridges
03
Thermal insulation of exterior walls
04
Facade insulation (of historic buildings)
05
Thermal insulation of cold storage, refrigeration containers
06
Prevention of mold growth
07
Industrial building insulation
08
Thermal insulation of heating and cooling systems
09
Tank and pipe insulation
10
Insulation of the pipes of district heating.
11
Insulation of metal surfaces and roofs
12
Heat insulation of metal containers

Technical information

Water absorption after 24 hours, on the surface: Usability temperature: Drying time at 20° C: Water vapor permeability: Coverage: UVB stability: Life span: Adhesion:
0,03 g/cm3
from -60°C to +180°C
can be repainted after 1 hour, complete drying of an 1 mm layer is 48 hours
0,2 Sd (Sd < 5 m = water vapor ermeable) 1 liter / 1 m2/1 mm (dry film thickness) UV stable
Plasters: 0,92 Mpa
Brick: 0,92 Mpa
Metals: 0,90 Mpa
Wood: 0,94 Mpa
Plastics: 0,92 Mpa

CERTIFICATES

iSURE vizsgálati jegyzőkönyvek, tanúsítványok

-
TÜV No.: C-681074-3 2015.09.22
-
Teljesítmény nyilatkozat: 2013.07.01
-
ENVI-TECH Kft. Optikai vizsgálat reflexió: 2014. március
-
Bálint Analitika Mikrobiológiai vizsgálat: 2014.09.16
-
Egészségügyi Toxikológiai Tájékoztató Szolgálat: 2014.10.13
-
ÉMI engedély: 2015.04.20. Projektszám: M4-3106X-04101-2014 Témaszám: M-4034/2014
-
ÉME engedély: A-60/2011
